SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Function: Universal adapter for x300dp plus

Hardware Version: universal adapter

Item Height: 15

Item Length: 20

Item Weight: 0.2

Item Width: 2.5

Model Name: FCA 12+8

Origin: Mainland China

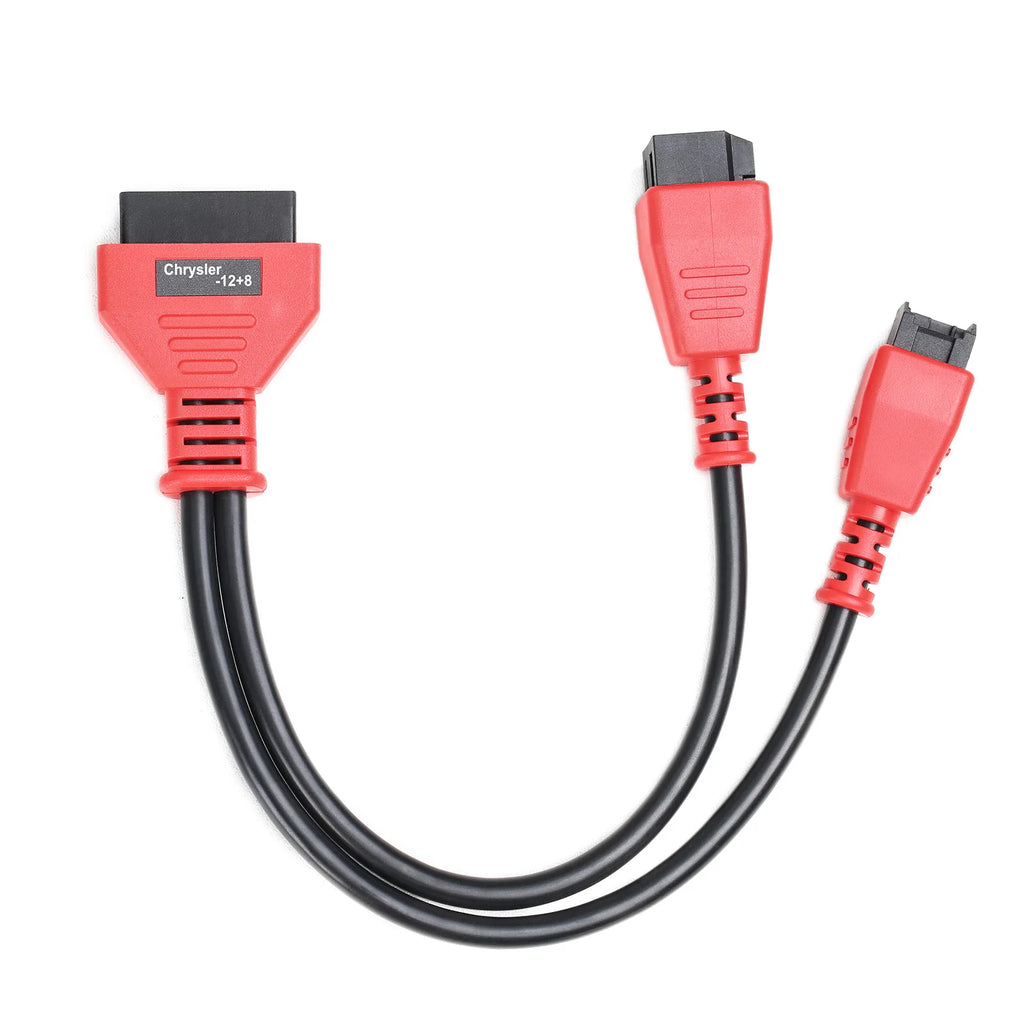

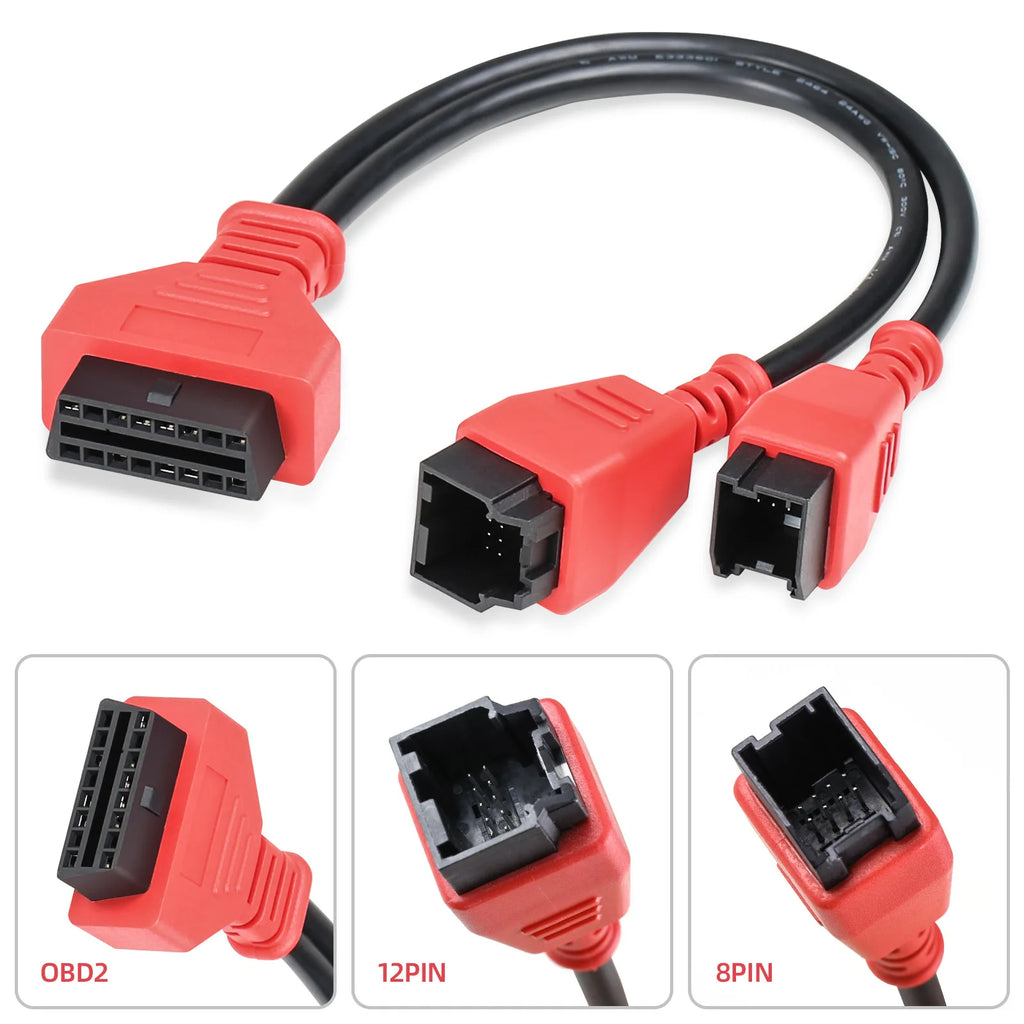

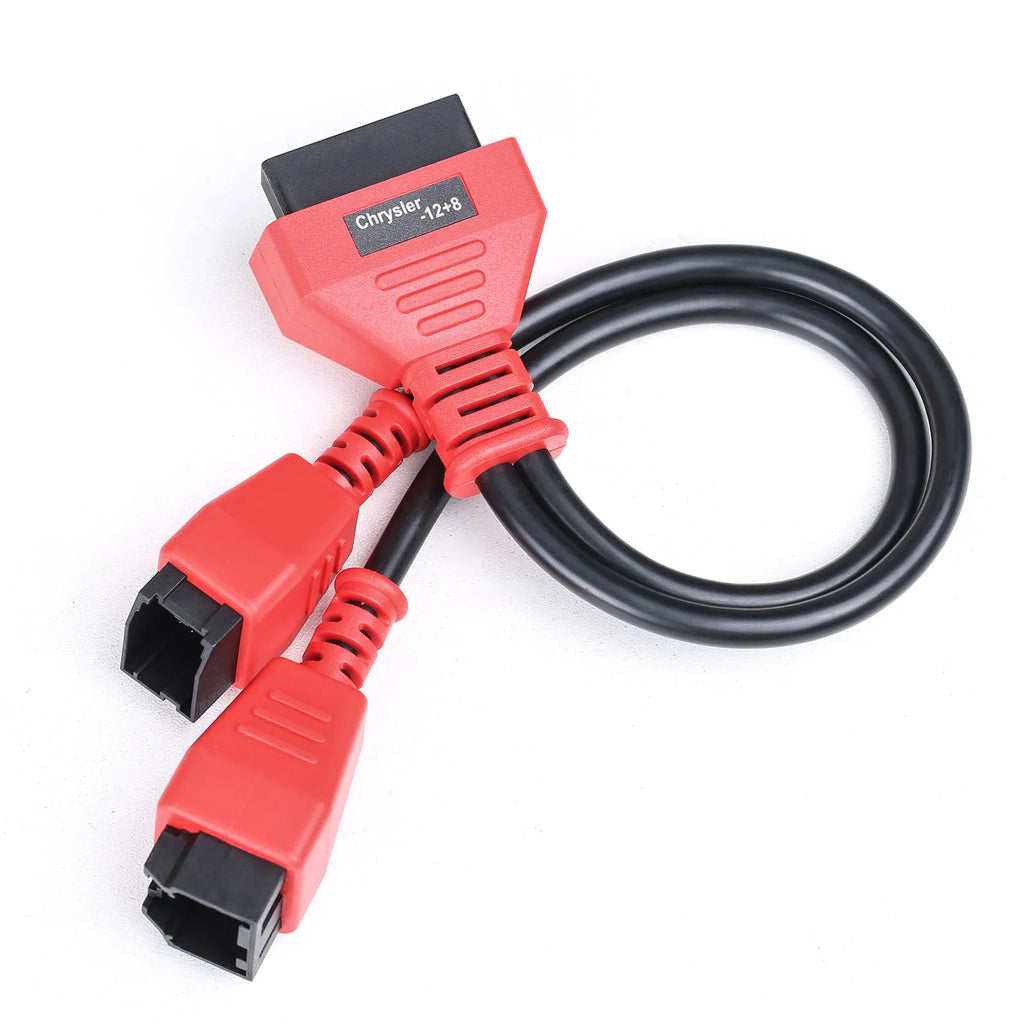

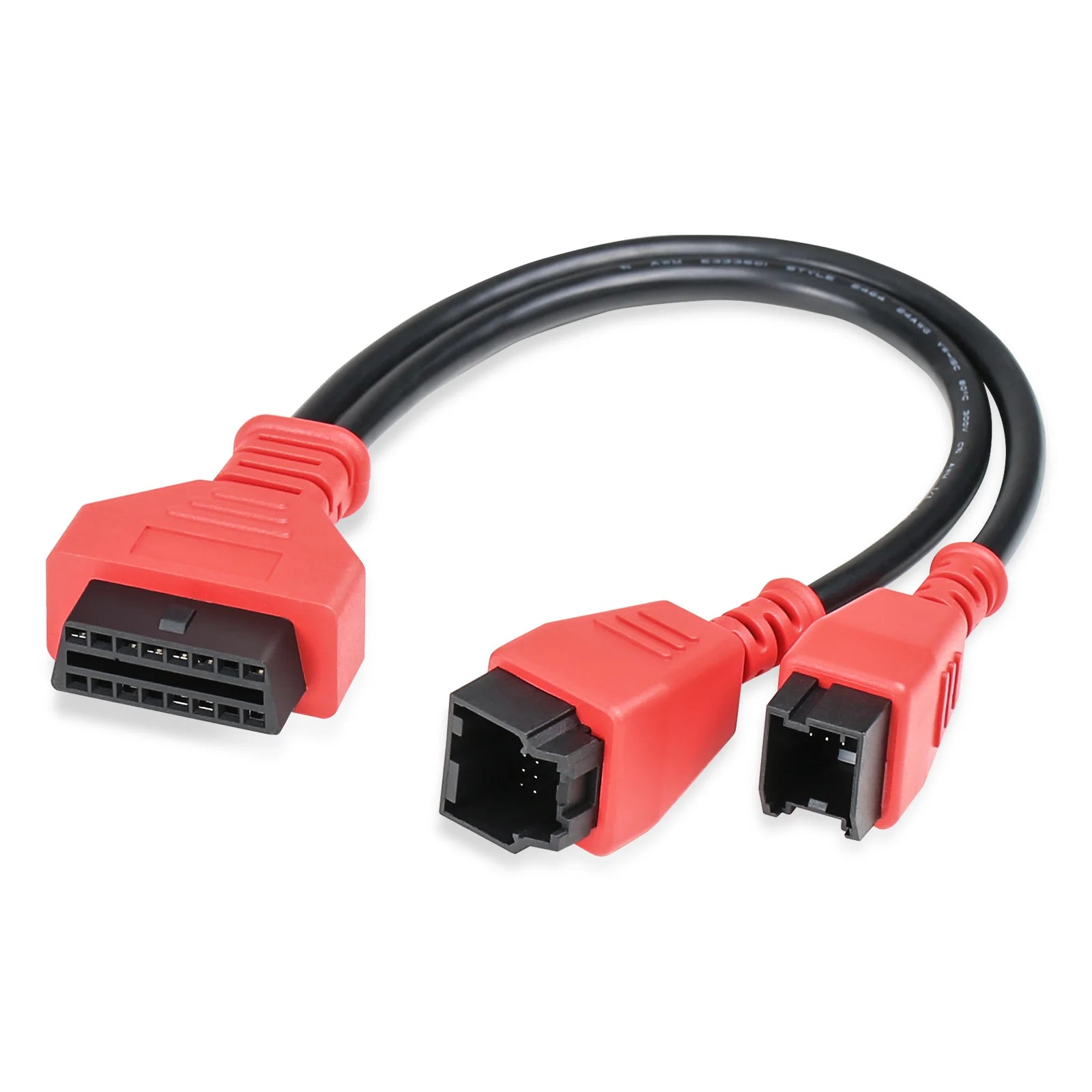

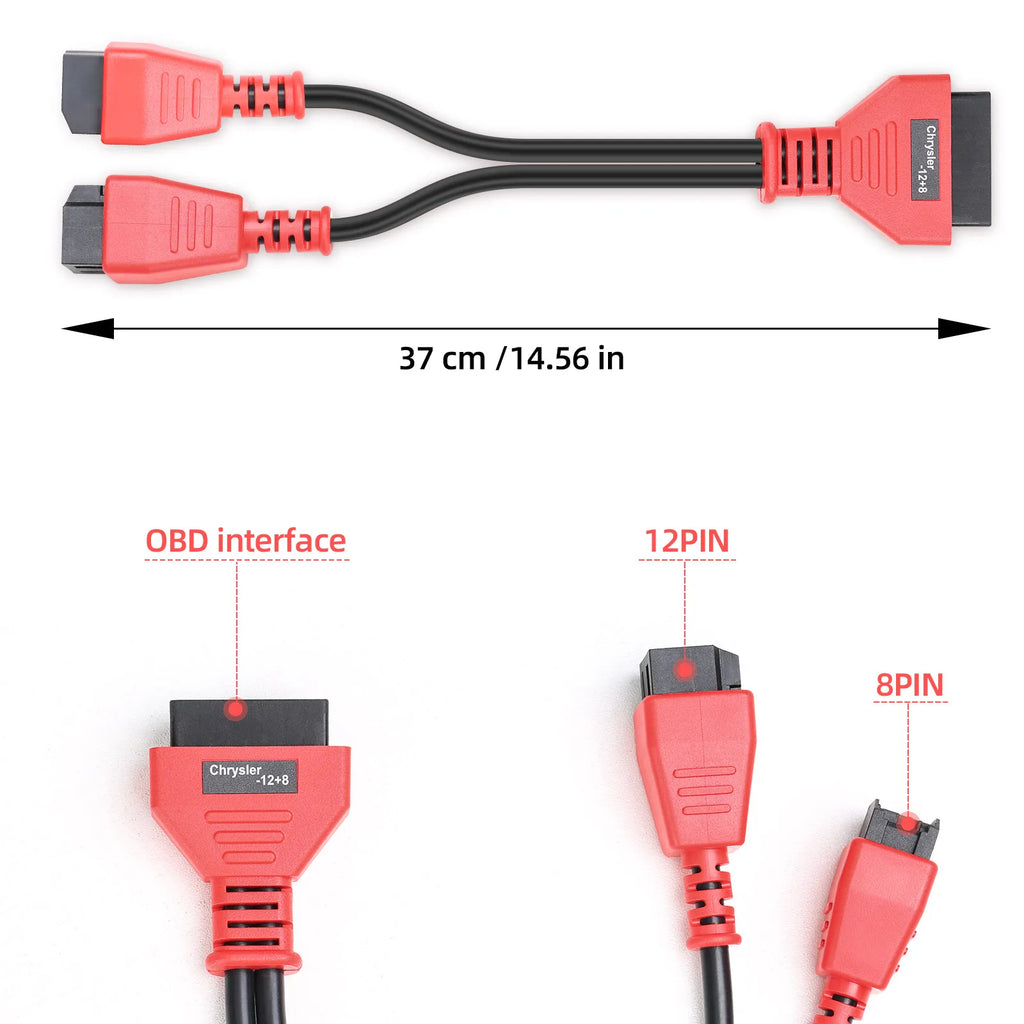

FCA 12+8 Adapter for Chrysler Work on Autel MaxiSys/IM608 /Launch X431 V/ OBDSTAR

FCA 12+8 Adapter is used for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.

2018 and newer for Chrysler, for Dodge, for Ram, for Jeep, and for Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle.The new for Chrysler 12+8 Diagnostic Cable allows communication with latest model for Chrysler, for Dodge, for Jeep, for Fiat & for Alfa vehicles.

Suitable for:

The 12+8 Adapter can be used with Maxisys Series Scanners MS906BT+ like MS906BT, MS906S, MS908, MS908S, MS908S PRO, Maxisys Elite and IM608.

OBDSTAR devices like OBDSTAR X300 DP Plus

Launch devices like Launch X431 V, Launch X431 V+ etc.

What is it used for?

1. It's used to diagnose for Chrysler /Jeep /Renegade /Wrangler 300C after 2018 year

2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Expect to see this message when scanning for Chrysler with the Security Gateway Module:

DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT

Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

Please Note:

YOU MUST USE THE APPROPRIATE CONVERTER. NO RETURNS WILL BE ACCEPTED FOR DAMAGE CAUSED BY USING THE WRONG POWER TYPE.

Features and Functions:

1. Read/ Clear Codes

2. Perform Active Tests

3. View Generic & Manufacturer Live Data

4. Perform TPMS OBDII Relearn

5. Coding and Adaptation with Maxisys Tablet Tools MS906BT+

6. ADAS calibrations (Requires Maxisys ADAS Software)

12+8 Adapter needed on Vehicles with Secure Gateway Module:

2013+ RAM Promaster

2015+ for Fiat 500x

2015+ for RAM Promaster City

2016+ for Jeep Renegade

2017+ for Alfa Romeo Giulia

2017+ for Jeep Compass

2017+ for Jeep Cherokee

2018+ for Jeep Wrangler

2018+ for Ram Trucks

2018+ for Dodge Durango

2018+ for Jeep Wrangler (JL Body only, not JK)

2018+ for Dodge Journey

2018+ for Jeep Grand Cherokee

2018+ for Chrysler Pacifica

2018+ for Chrysler 300

2018+ for Dodge Charger

2018+ for Dodge Challenger

2019+ Most for Fiat/ Chrysler/ Jeep/ Ram vehicles

2020+ ALL FCA vehicles

Package List:

1pc x FCA 12+8 Adapter
